Cleanroom Cable Carriers · WWC28

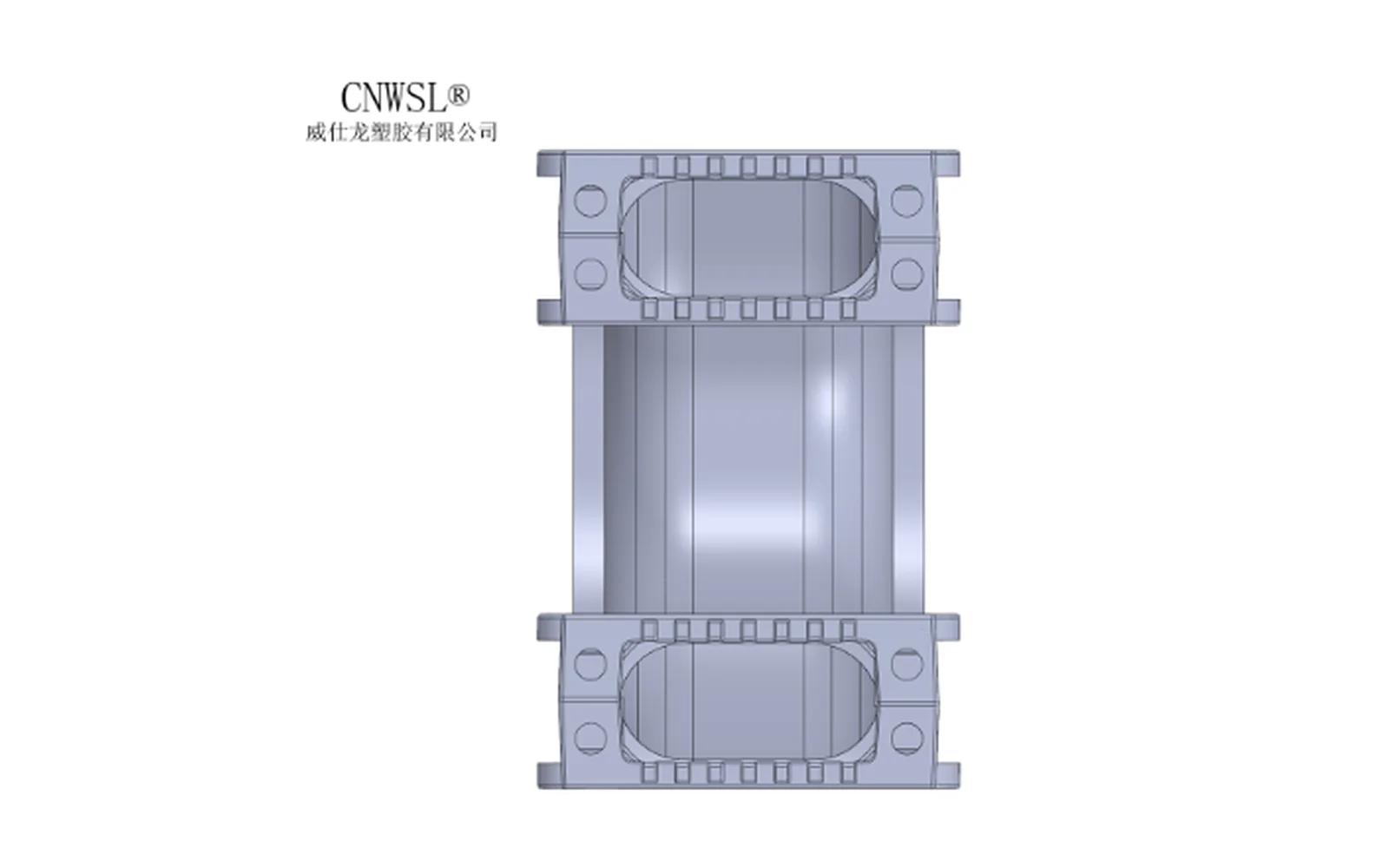

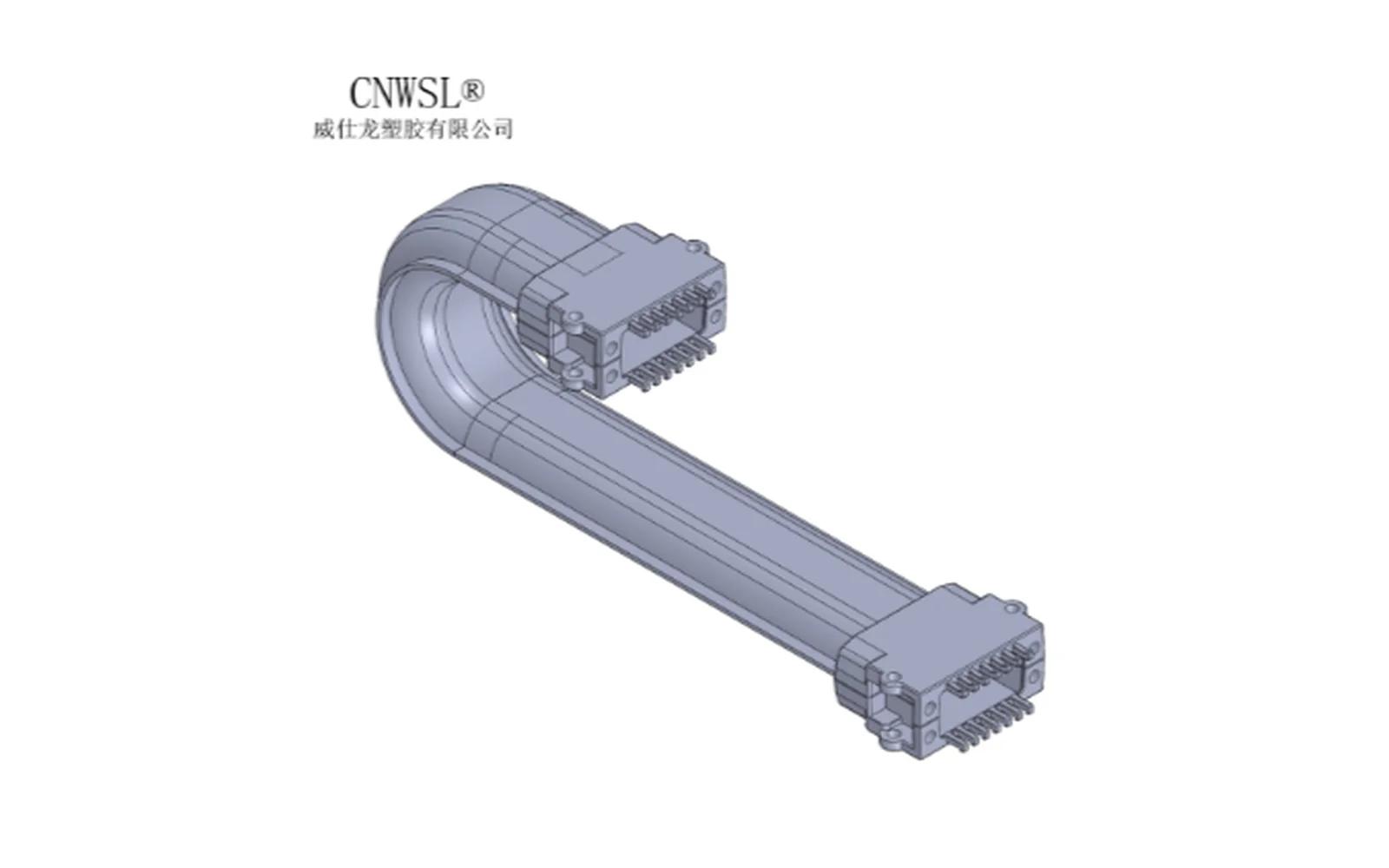

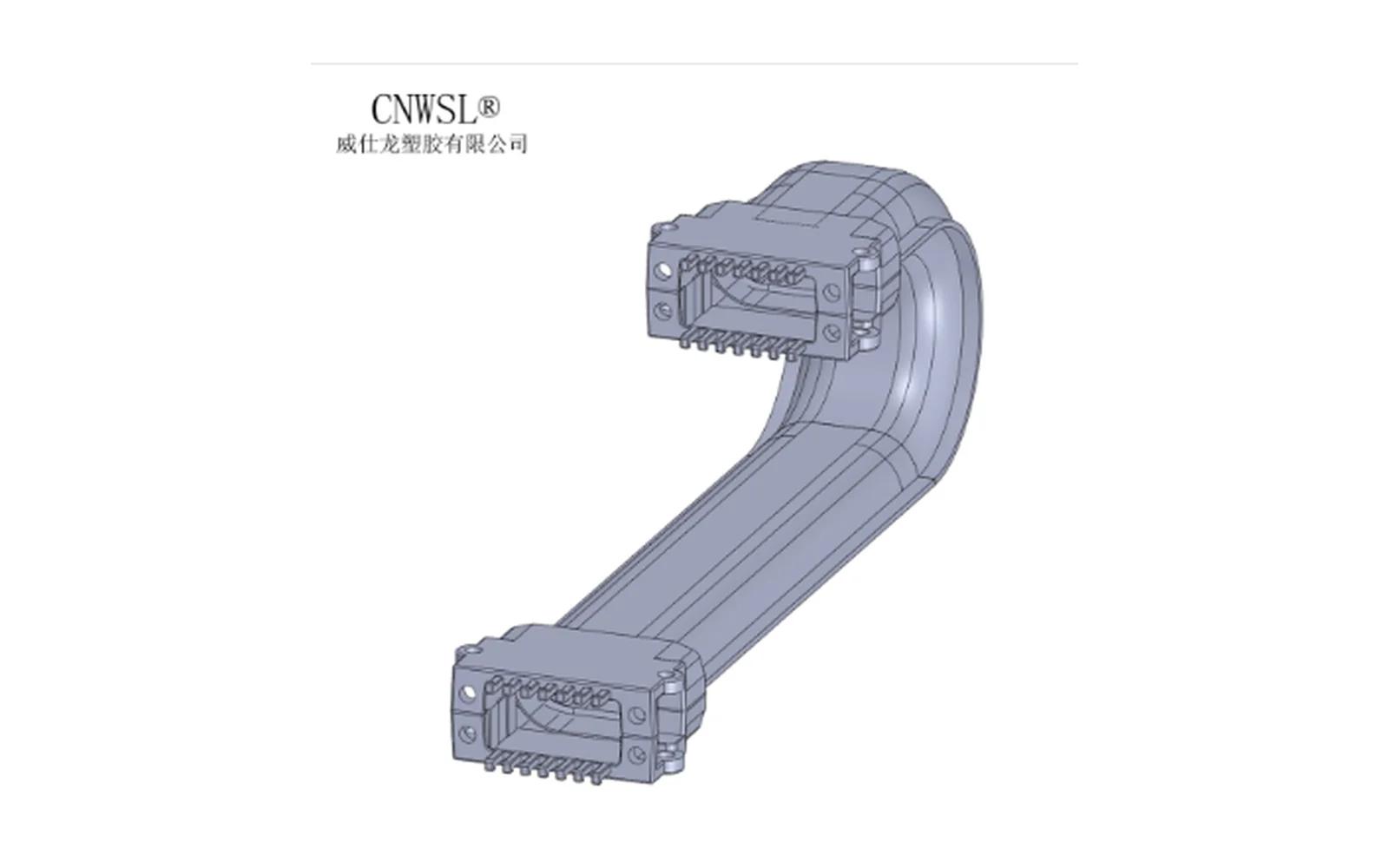

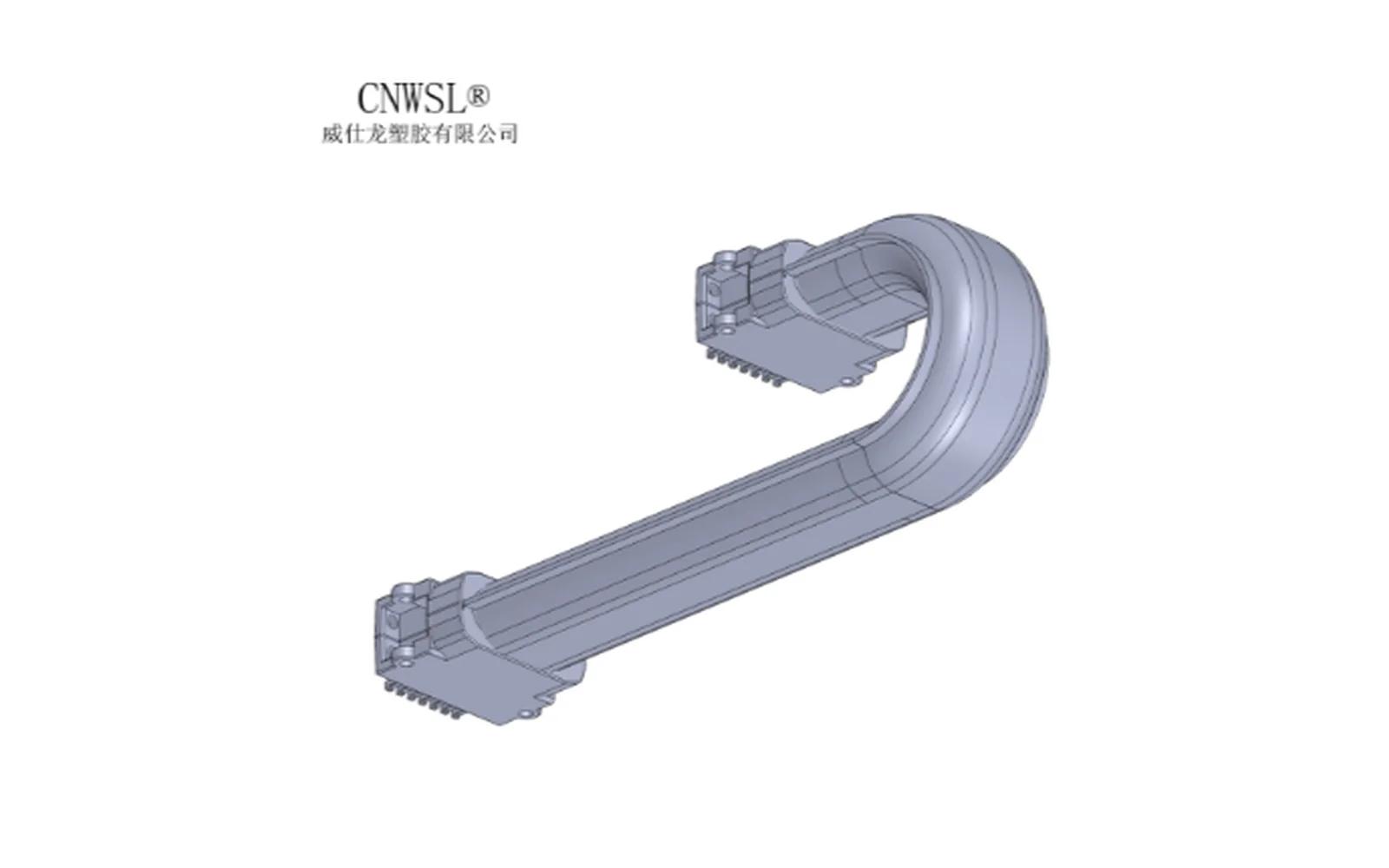

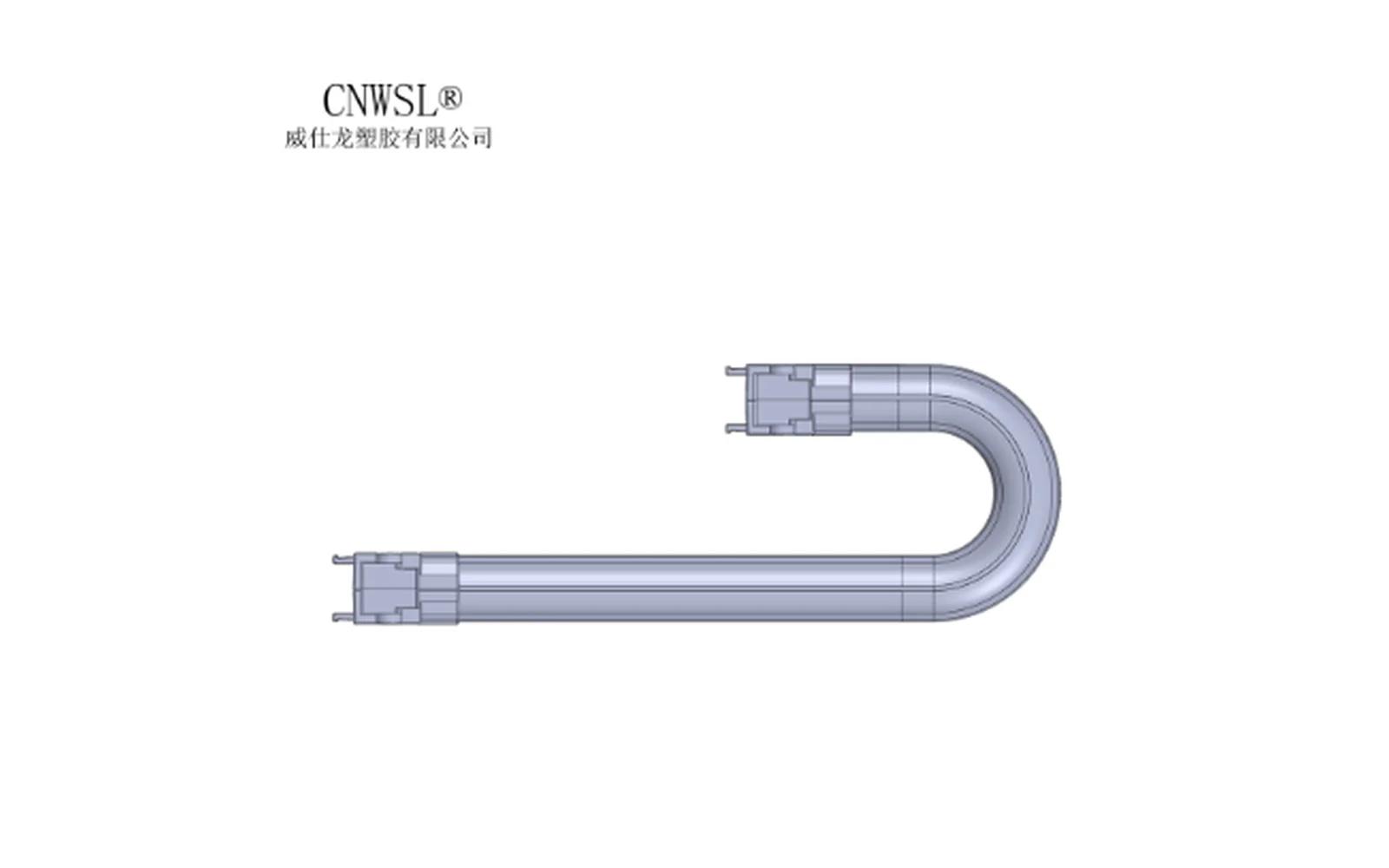

WWC28 Cleanroom cable carrier, inner height 28 mm, inner width 65 mm
WWC28-28-65 is a CNWSL Cleanroom Cable Carriers WWC28 carrier with 28 mm inner height, 65 mm inner width, TPU, and bend radii R40 / R60 / R70 / R90.
Specifications
- Model code
- WWC28-28-65
- Inner height (H)
- 28 mm
- Inner width (B)
- 65 mm
- Opening type
- Cleanroom
- Material
- TPU
- Connector
- WWC28-28-65C
Available bend radii
The same size can be ordered with different bend radii (R). Length and travel can be customized to your duty cycle.
| Bend radius | Code example | Notes |
|---|---|---|
| R40 | WWC28-28-65-R40 | Compact spaces |
| R60 | WWC28-28-65-R60 | Common choice |
| R70 | WWC28-28-65-R70 | Common choice |
| R90 | WWC28-28-65-R90 | Common choice |
Features
- Cleanroom design for industrial cable protection
- Inner height 28 mm / inner width 65 mm
- Bend radii R40, R60, R70, R90
- Material TPU
- Matching connector WWC28-28-65C
Request a quote
Tell us your machine type, travel and bend-radius needs—we will reply with pricing promptly.
